37.8 x 110.25" | 960 x 2800mm
SPC WALL PANELS
Plank Size: 37.8" x 110.25" Inches ( 960 x 2800mm )
Edges: Straight
Core: Endurance Tech SPC (Stone Polymer Composite with 2000 kg/m3 Density )
Thickness: 4mm
Protection: Ultimate Shield; Scratch, Stain and Wear Resistant - Surface Coating -
Wear Layer: 12mil ( 0.3mm )
Visuals: Digital Ultra HD, Naturel Stone Appearance.
Surface: Stone Replicated Lightly Textured
Installation: FOR INDOOR STRAIGHT WALLS APPLICATIONS - USING SPECIFIC CONSTRUCTION ADHESIVE, TILE LEVELERS,SPACERS AND SILICONE TO COVER EDGES. **SEE COMPLETE INSTALL INFO IN BLUE SECTION ABOVE**
Residential Warranty: Lifetime Limited
Light Commercial Warranty: 7 - 10 Year Limited
Intertek Clean Air Gold Certified: Our products meet the most stringent air emissions criteria
HIGH QUALITY STANDARDS OF PRODUCTION: Our products meet and exceed USA Quality ASTM & ISO Standards
QUANTITIES

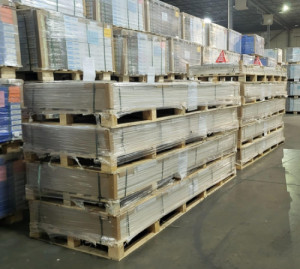

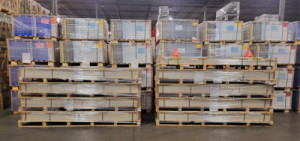

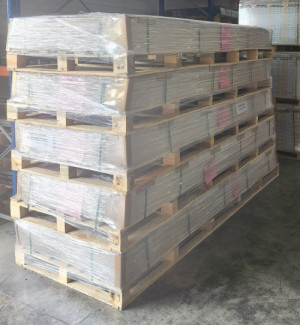

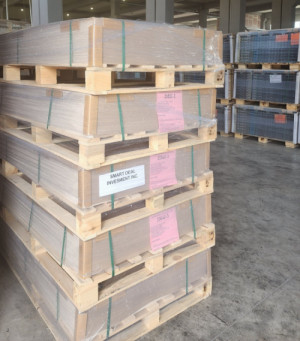

PIECE: 29 SQFT | 2.70 M2 - PALLET 50 PCS | 1450 SQFT | 134.76 M2
WEIGHTS:
PIECE: 50 LBS | 22.68KG - PALLET 2500 LBS | 1134 KG
SPC WALL PANELS
100 % WATERPROOF
NEW GENERATION WALL COVERING
ULTIMATE SHIELD TECHNOLOGY:
Sets a new industry benchmark in surface protection. This Special UV Coating Technology provides superb performance in Scratch, Stain and Wear Resistance (10x Stronger Resistance then regular UV ) It is sourced from an American company and found on all TRU-STONE Products
ENDURANCE TECH CORE
Featuring proprietary technology to create the ultimate strength SPC waterproof core, which provides over 2000kg m3 density. This results in a product that is structurally solid, impact resistant, extremely durable and guaranteed to last. We achieve this by utilizing a premium quality and completely safe formula which consists of 70% Natural Stone, Virgin pvc, as well as the highest grade polymers and minerals fused together under heat & high pressure using special tech Extruders. Our Core provides next level performance above and beyond competing products.
Our uncompromising core values are to produce and supply superb quality products that promotes a healthy environment in any setting. Our SPC Rigid Core Products have been tested by Intertek Sustainability and achieved Clean Air Gold Certification. In addition, the raw materials we use in production are also tested regularly by third party sources to ensure they meet and exceed the highest quality and health standards.
Feel comfortable knowing that our products:
-Are Completely safe to be used in various indoor applications.
-Meet the most stringent air quality emissions criteria.
-Do not contain harmful materials such as benzene, formaldehyde, phthalate, or heavy metals.
-Are Antibacterial; impeding the growth of bacteria, fungi and mold.
-Are ethically produced with recycling systems that produce zero manufacturing waste.
-Production Utilizes Green Renewable Solar Energy
HEALTHY SURFACE CHOICE

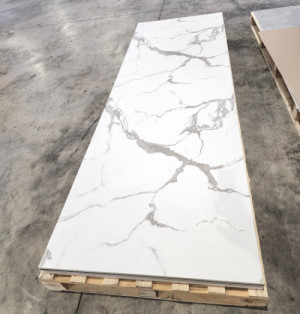

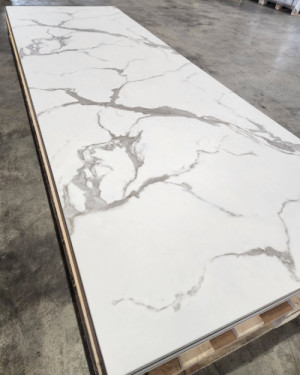

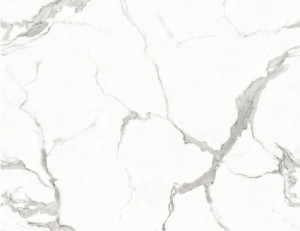

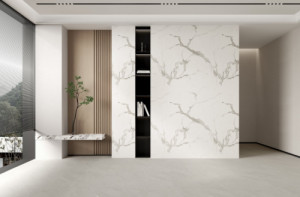

23040-3

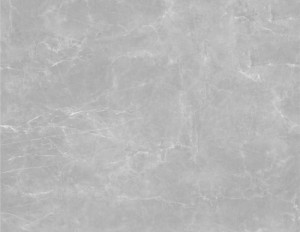

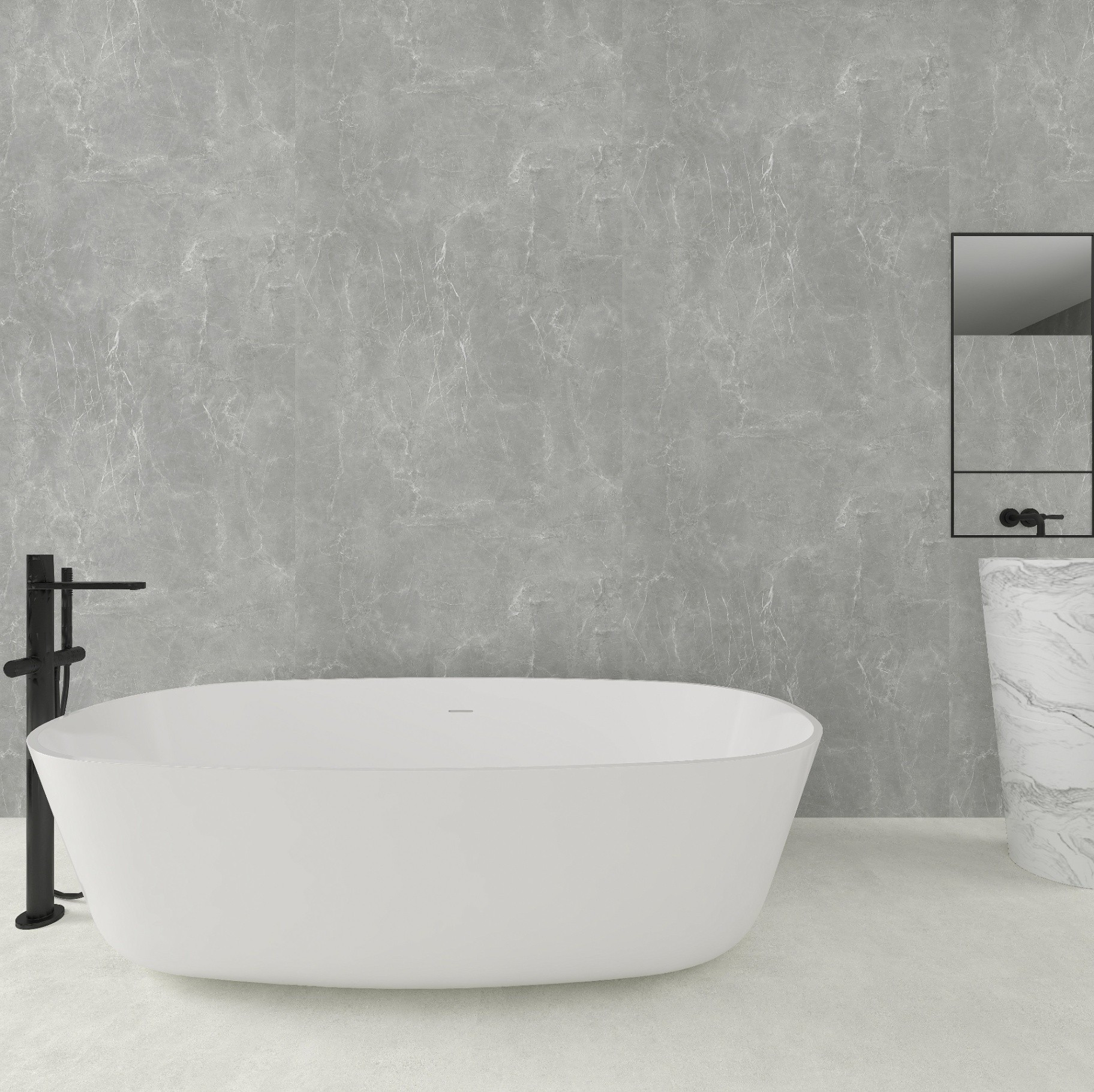

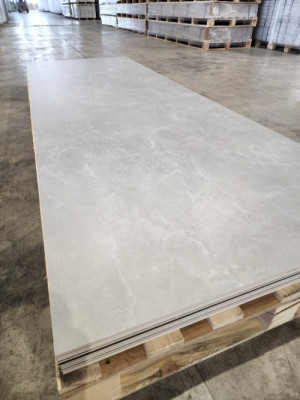

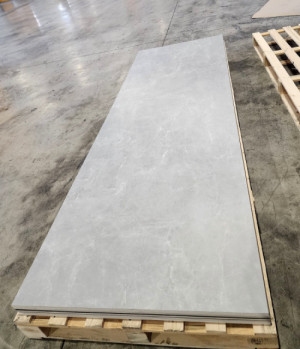

23033-1

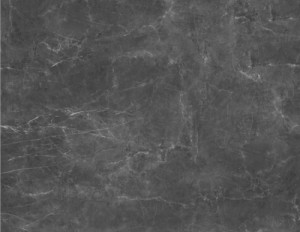

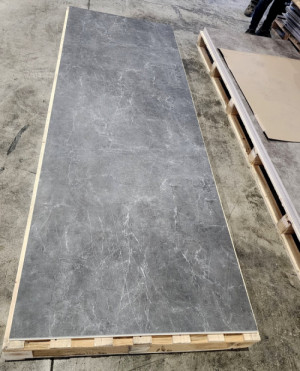

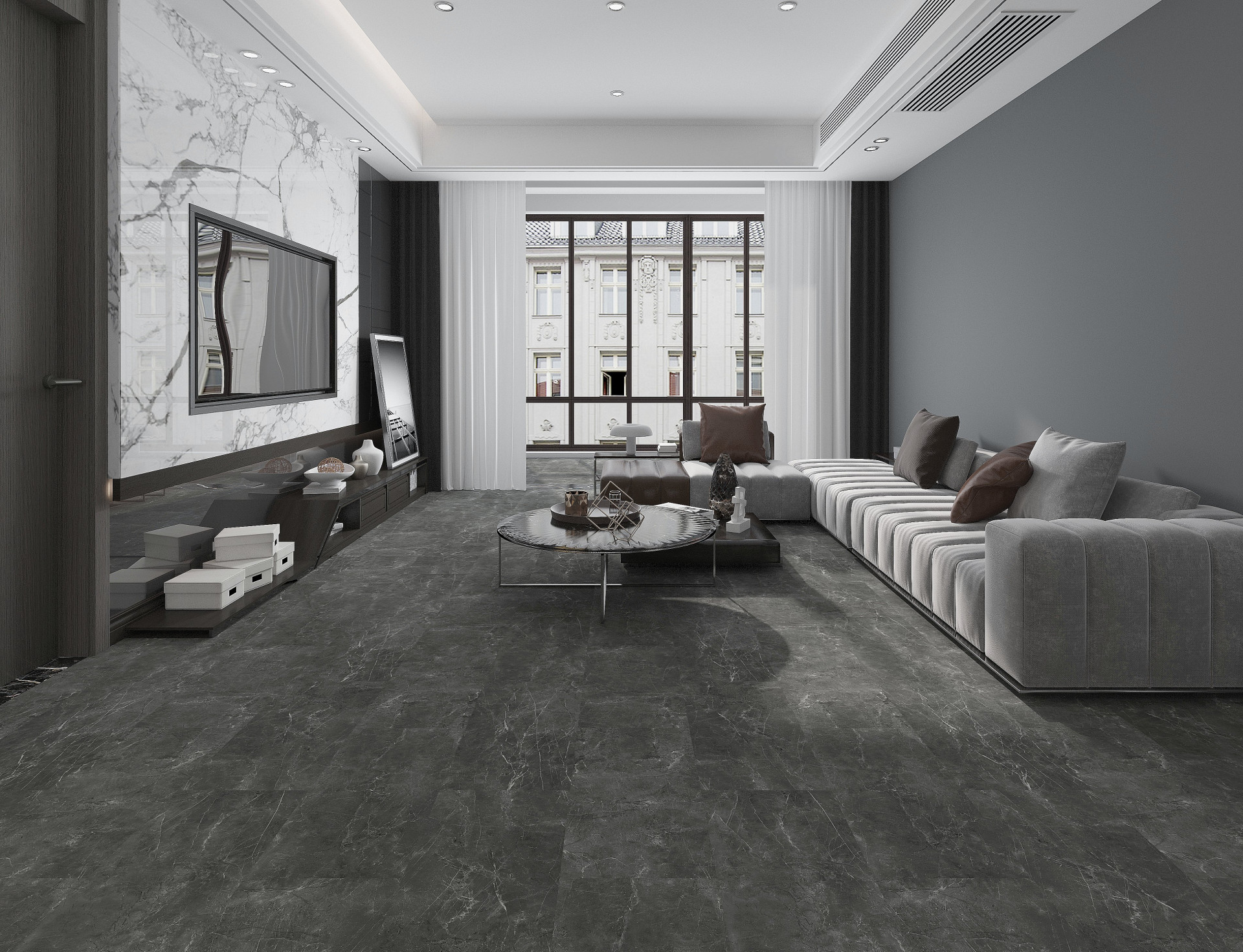

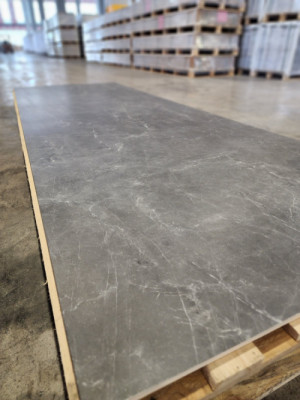

23033-2

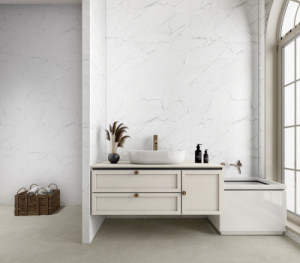

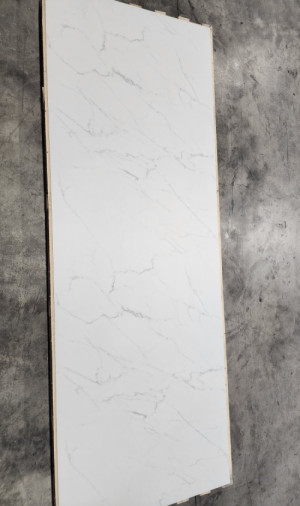

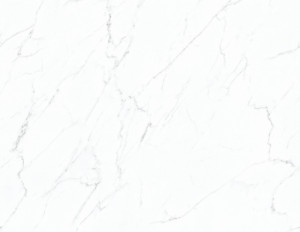

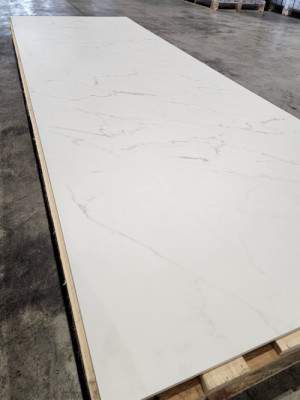

23089-1

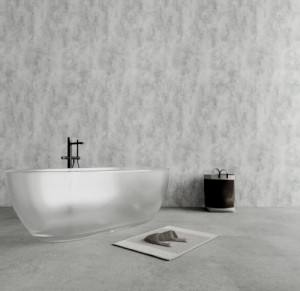

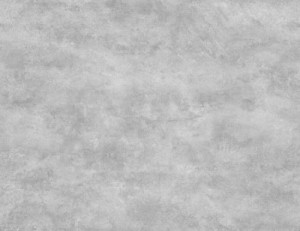

23054-3

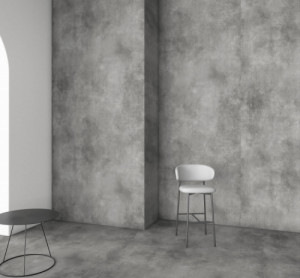

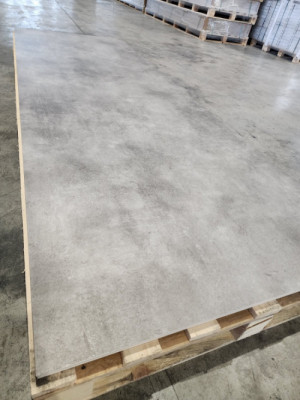

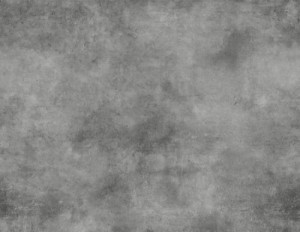

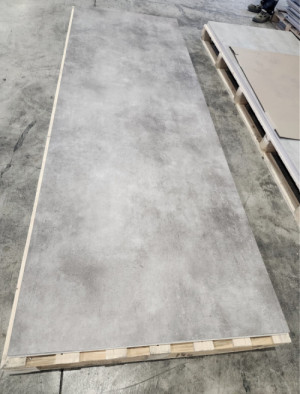

23069-9

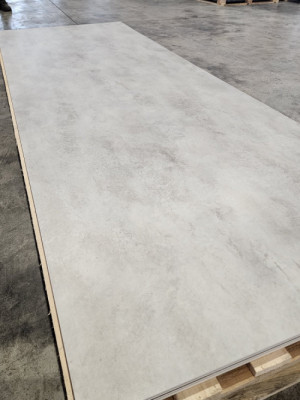

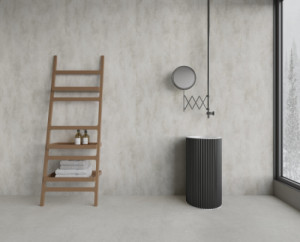

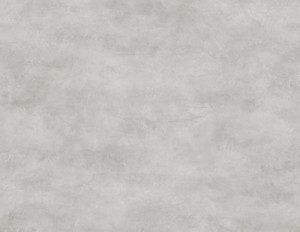

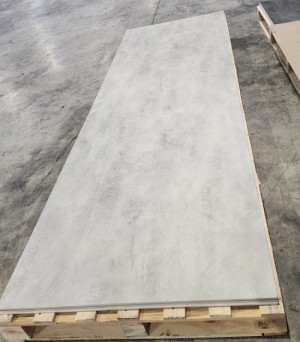

23054-5

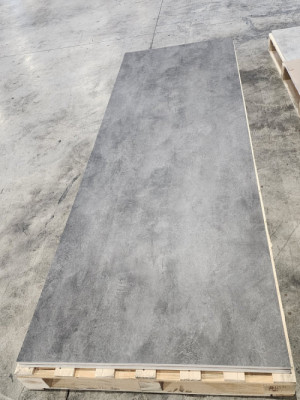

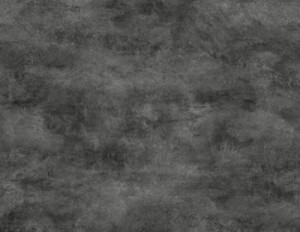

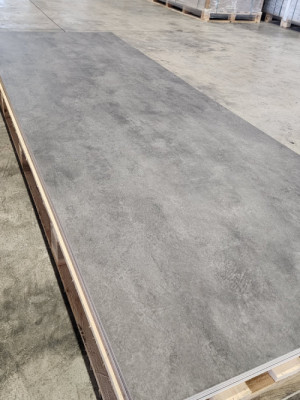

23054-2
WARRANTY DISCLAIMER - Residential Lifetime = 25 years. Commercial Warranty Applicable to Light & Medium Traffic Areas. Not Applicable to Heavy Traffic Areas. 22 Mil Wear Layer products have 10 year | 12 Mil Wear layer products have 7 year Commercial warranty. Complete warranty info can be found on the General Info & Downloads page
APPLICATIONS:

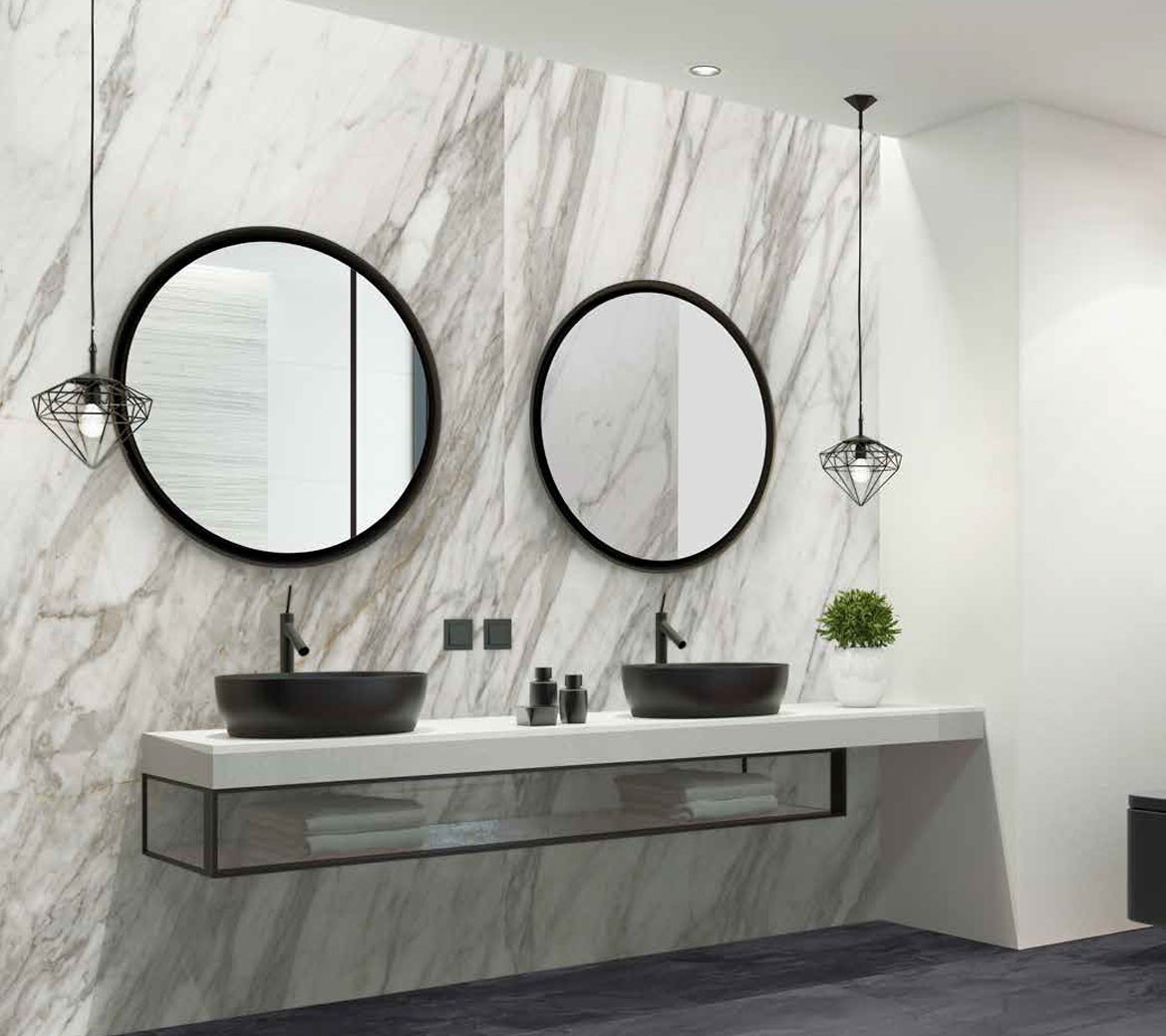

IDEAL CHOICE FOR ALL RESIDENTIAL & COMMERCIAL INDOOR WALL APPLICATIONS:

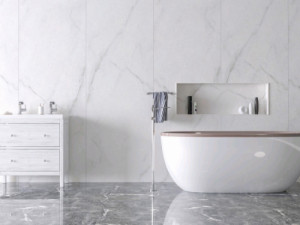

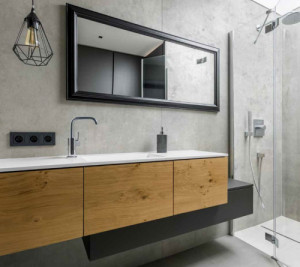

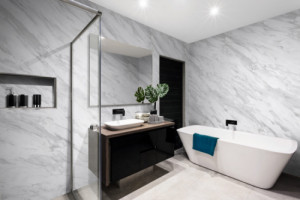

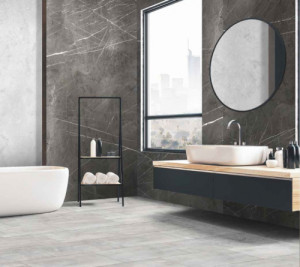

BATHROOMS | SHOWERS | KITCHENS | BEDROOMS | FEATURE WALLS | RETAIL | OFFICE | SHOWROOMS
FEATURES & BENEFITS:
- BEAUTIFUL DIGITAL HD NATURAL STONE & WOOD LOOK. ADDS ELEGANCE TO ALL WALL SURFACES
- DIY FRIENDLY AND A COST EFFECTIVE WALL COVERING CHOICE.
- EASY TO HANDLE & INSTALL ON ANY STRAIGHT & FLAT WALLS.
- STRONG LONG LASTING PERFORMANCE - WILL NOT FADE OR DEGRADE OVER TIME
- ENDURANCE TECH CORE + WEAR LAYER + ULTIMATE SHIELD COATING FOR SUPERIOR STRENGTH
- PROVIDES SOUND ABSORBTION QUALITIES
- 100% WATERPROOF & HIGHLY FIRE RESISTANT
INNOVATIVE WALL TILE SOLUTION
-EASY TO HANDLE & TRANSPORT & INVENTORY
-SIMPLE INSTALLATION PROCESS COMPARED TO CONVENTIONAL TILES / SLABS
-PRACTICAL CHOICE FOR ANY RESIDENTIAL + COMMERCIAL APPLICATION
-BUDGET FRIENDLY PRODUCT & INSTALL COST
-IMPRESSIVE VIVID HD - NATURAL STONE & WOOD EMULATED SELECTIONS
-SATIN MATTE SURFACE TEXTURES WITH NATURAL EMBOSSING
-FEATURING ENDURANCE TECH SPC CORE WITH 2000 KG/M3 DENSITY. ENGINEERED WITH 70% NATURAL STONE + 30% COMBINATION OF VIRGIN PVC, MINERALS AND STABILIZERS FUSED UNDER HIGH HEAT & PRESSURE USING SPECIAL TECH EXTRUDERS.
-BUILT TO LAST & PERFORM - LIFETIME LIMITED WARRANTY
PANEL SIZE: 37.8 x 110.25" | 960 x 2800mm
THICKNESS: 4mm

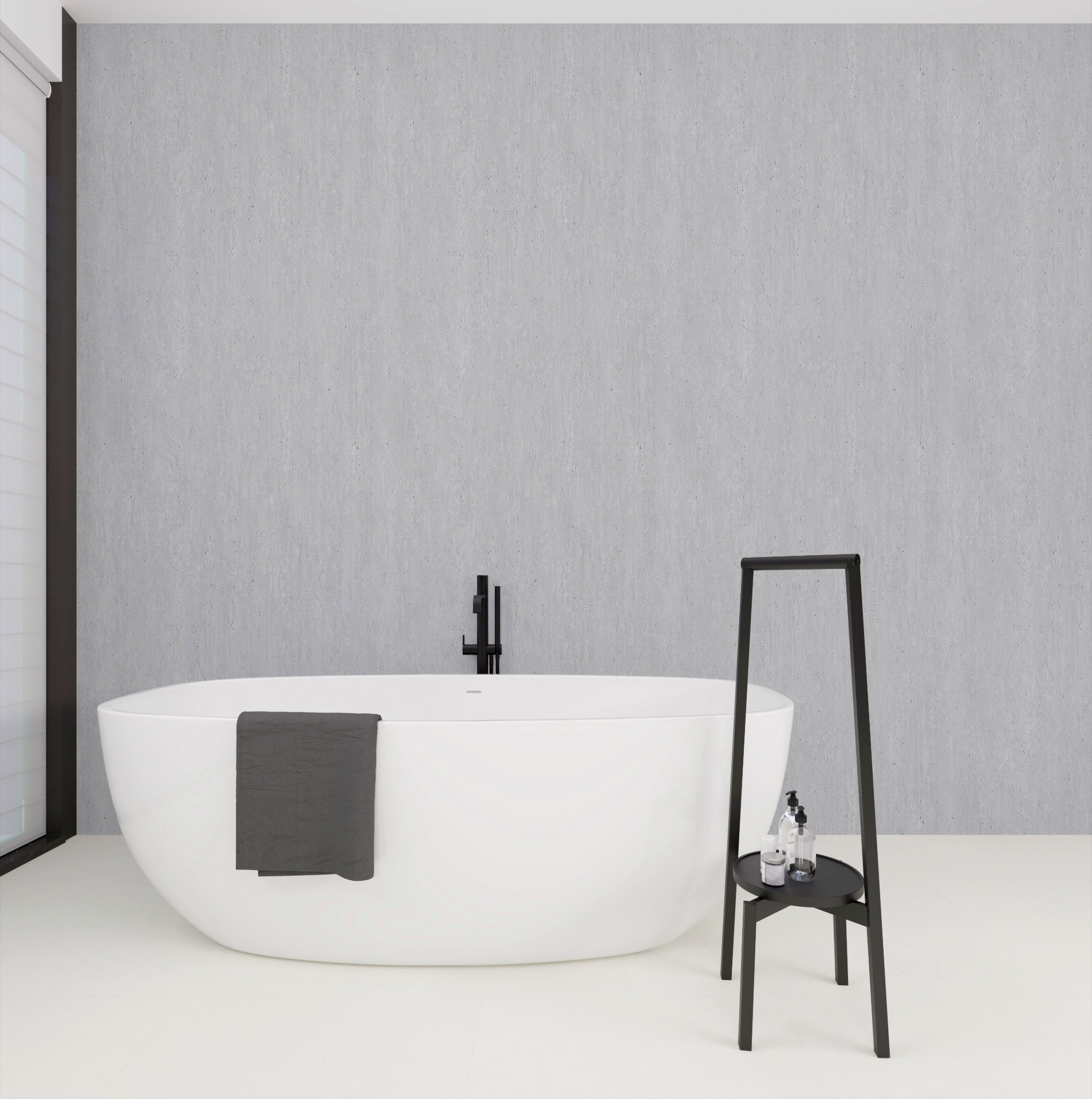

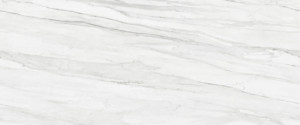

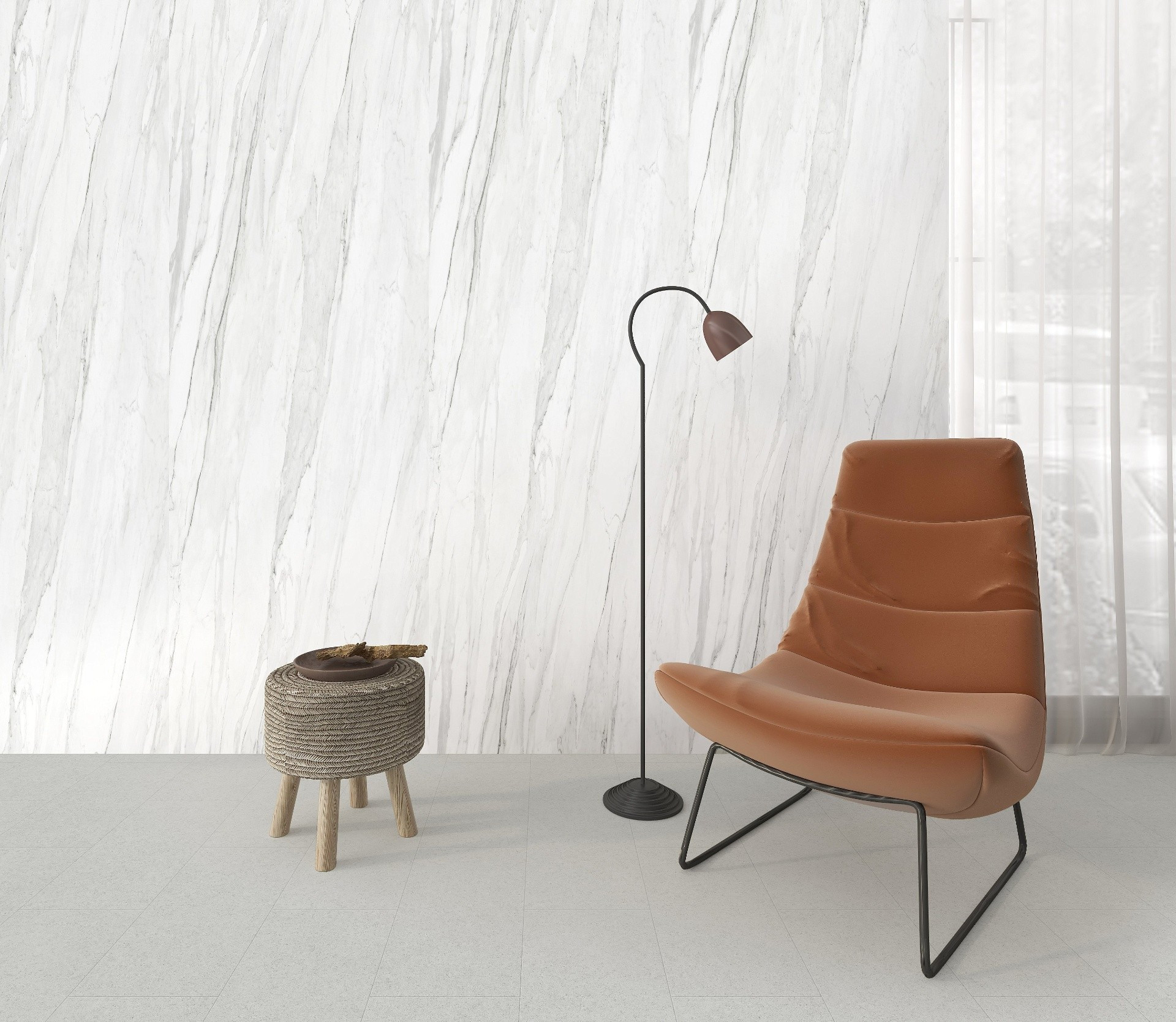

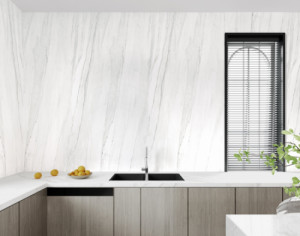

23138-2

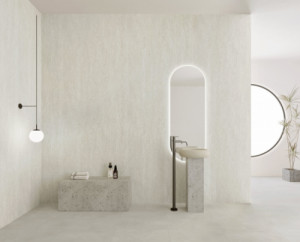

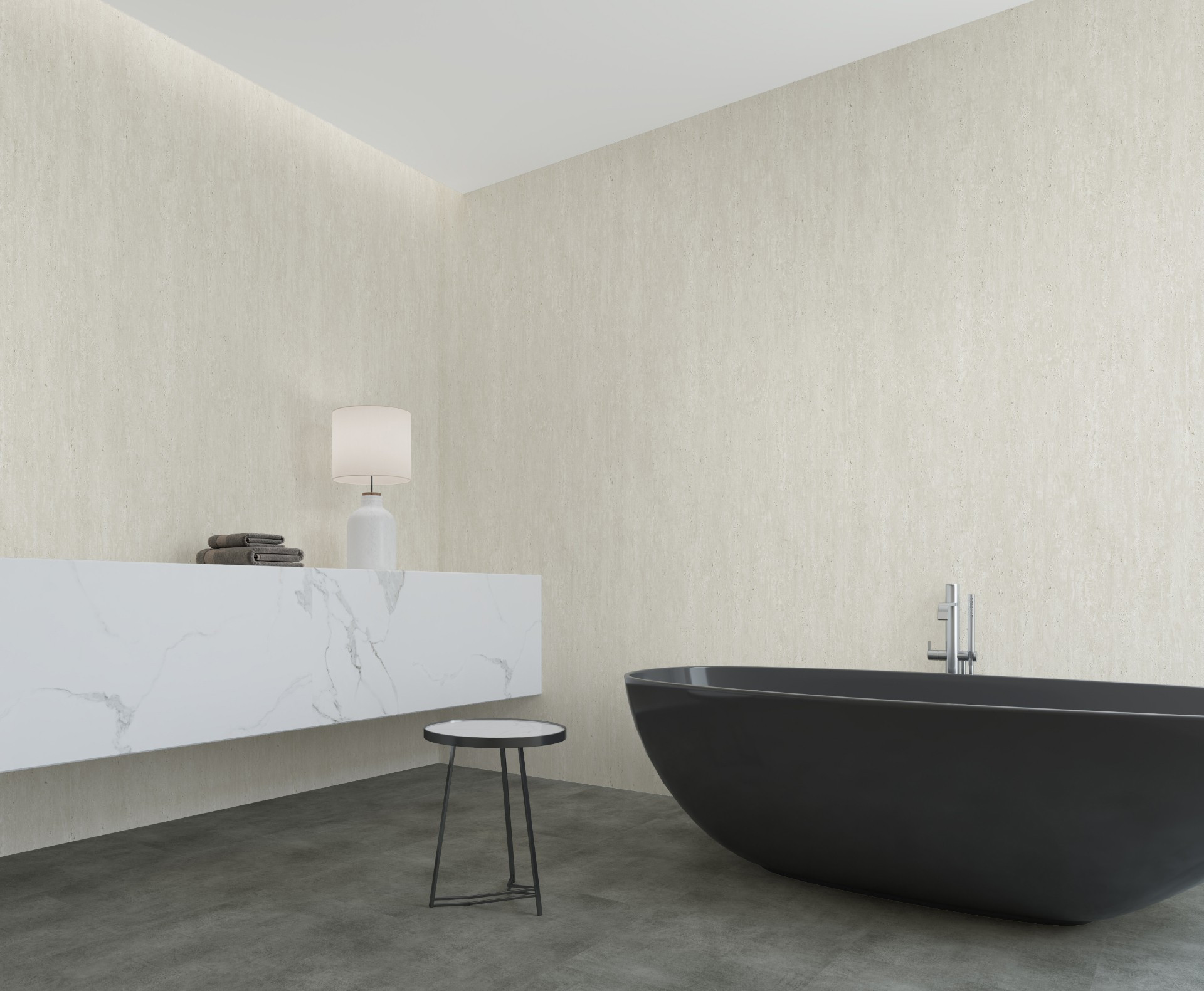

23137-6

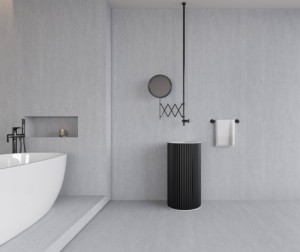

23137-3

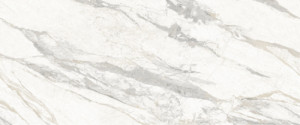

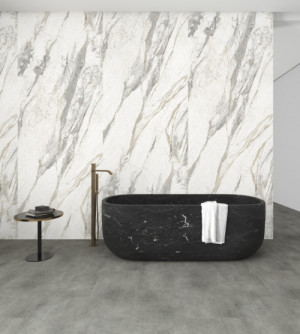

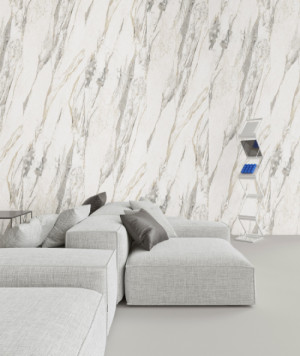

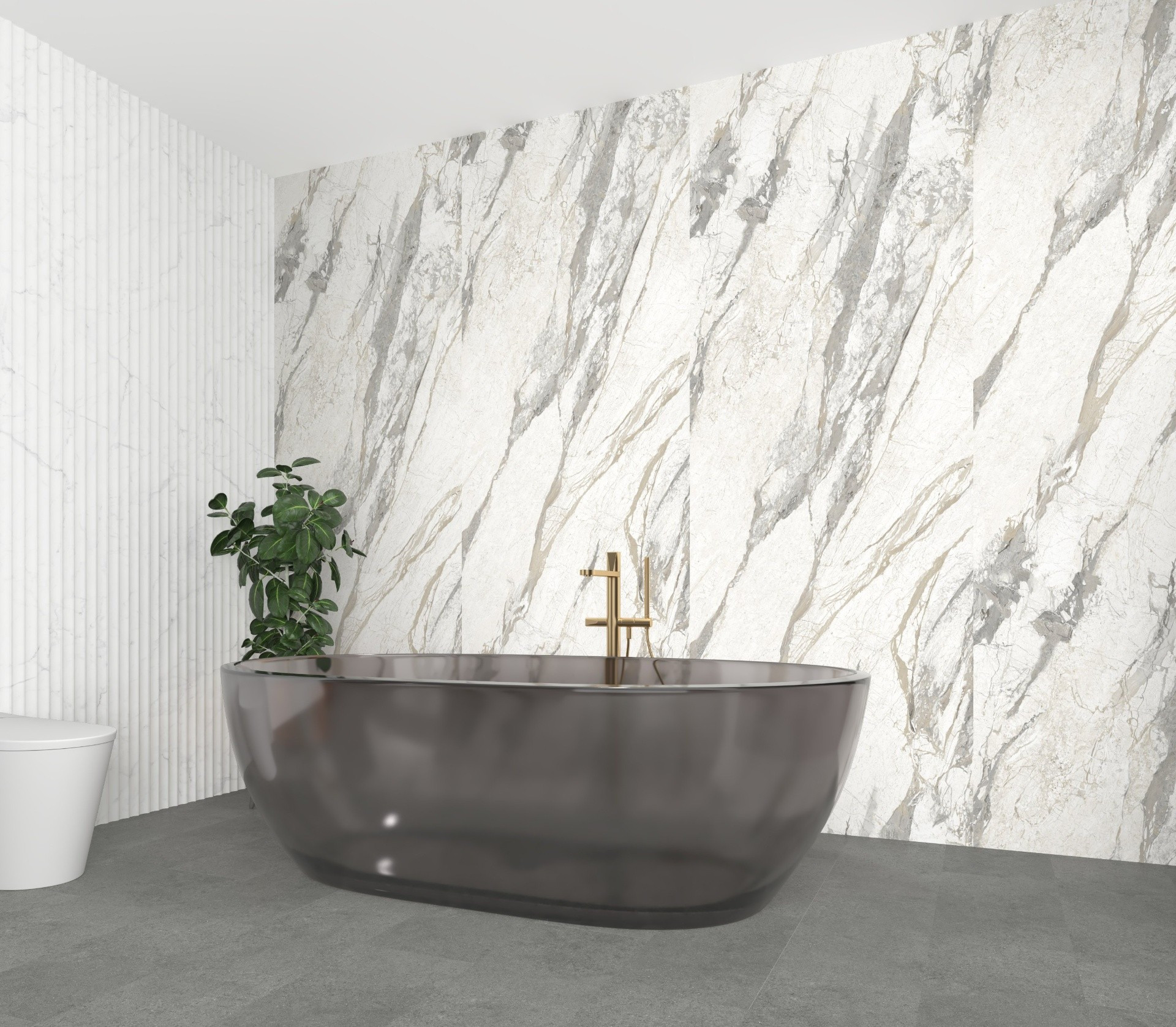

23139-1

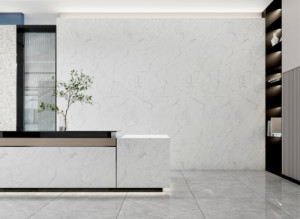

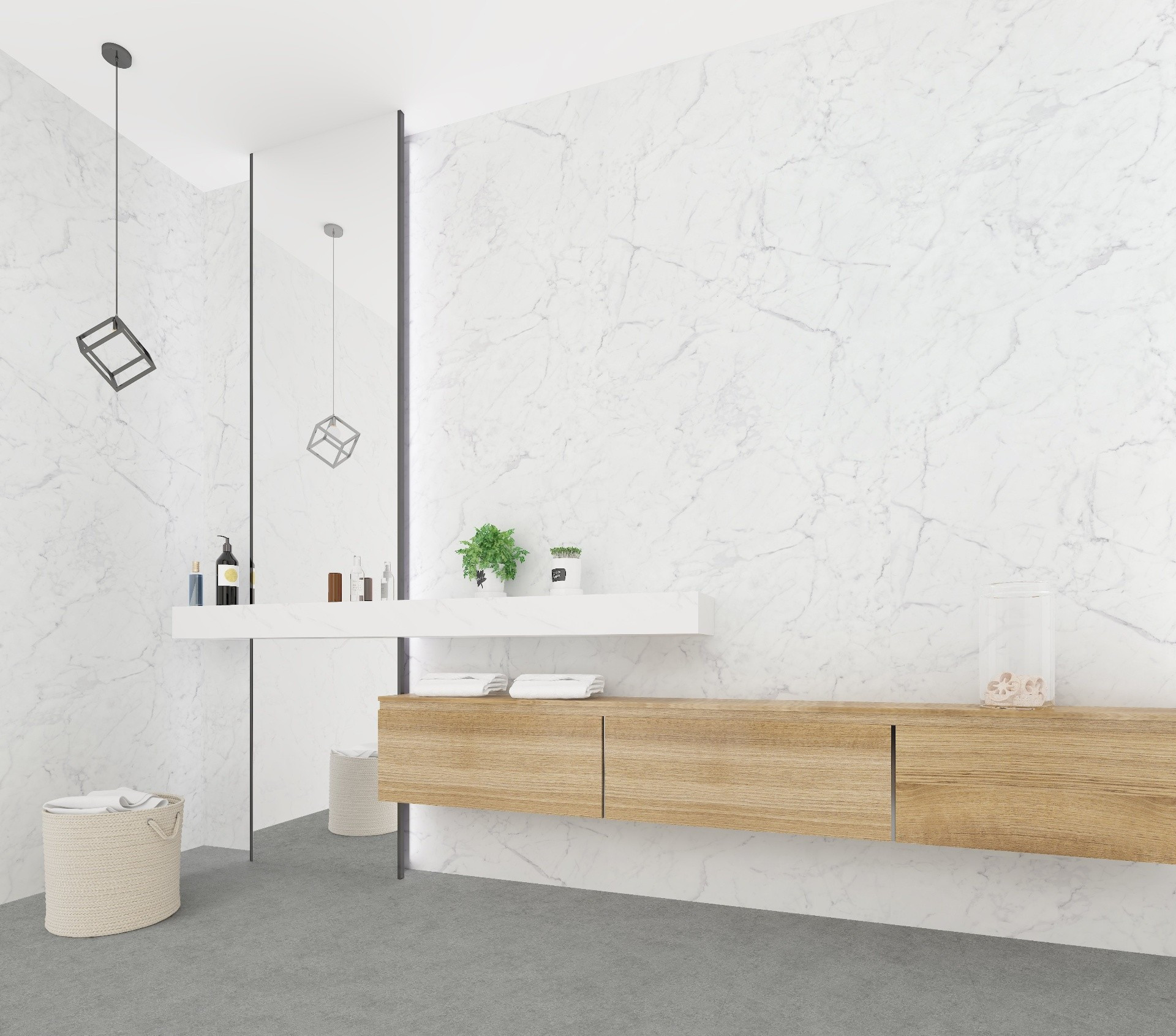

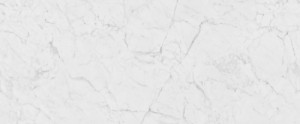

23140-1

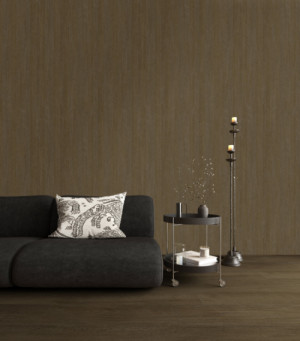

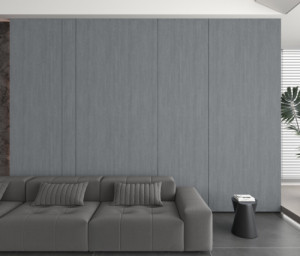

29192-6
29192-4

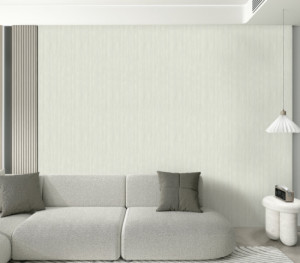

29192-1

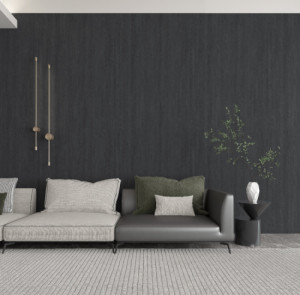

29192-8

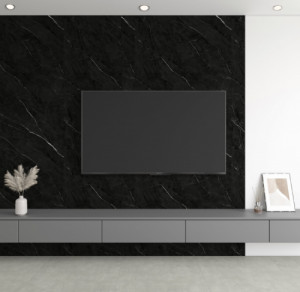

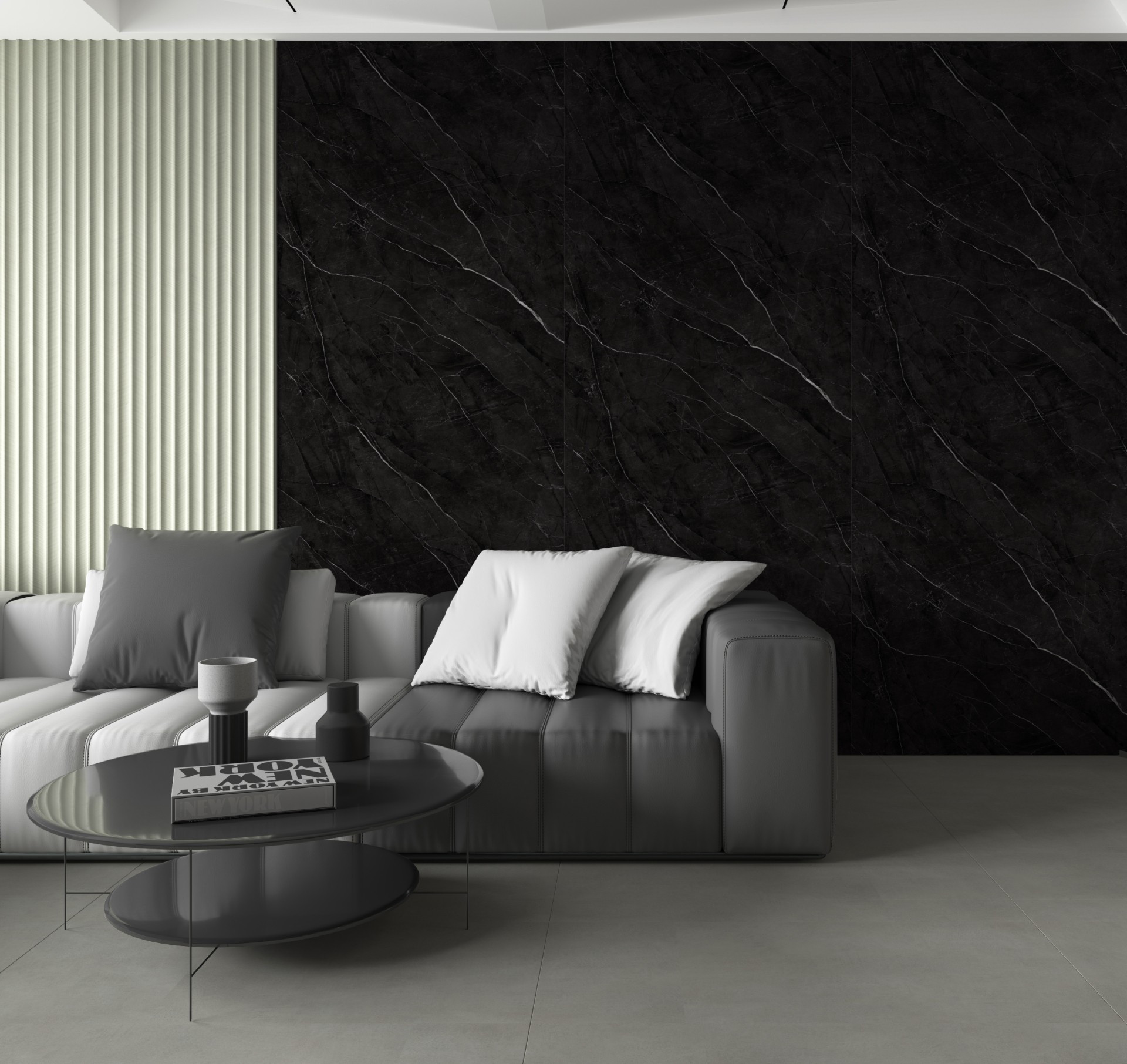

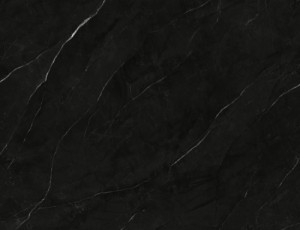

23047-8

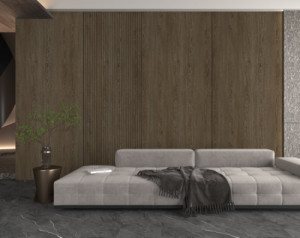

16041-8

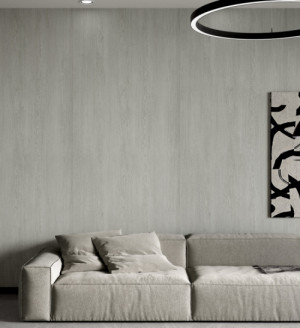

16041-4

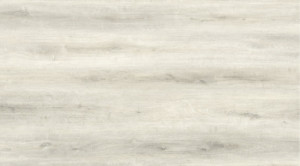

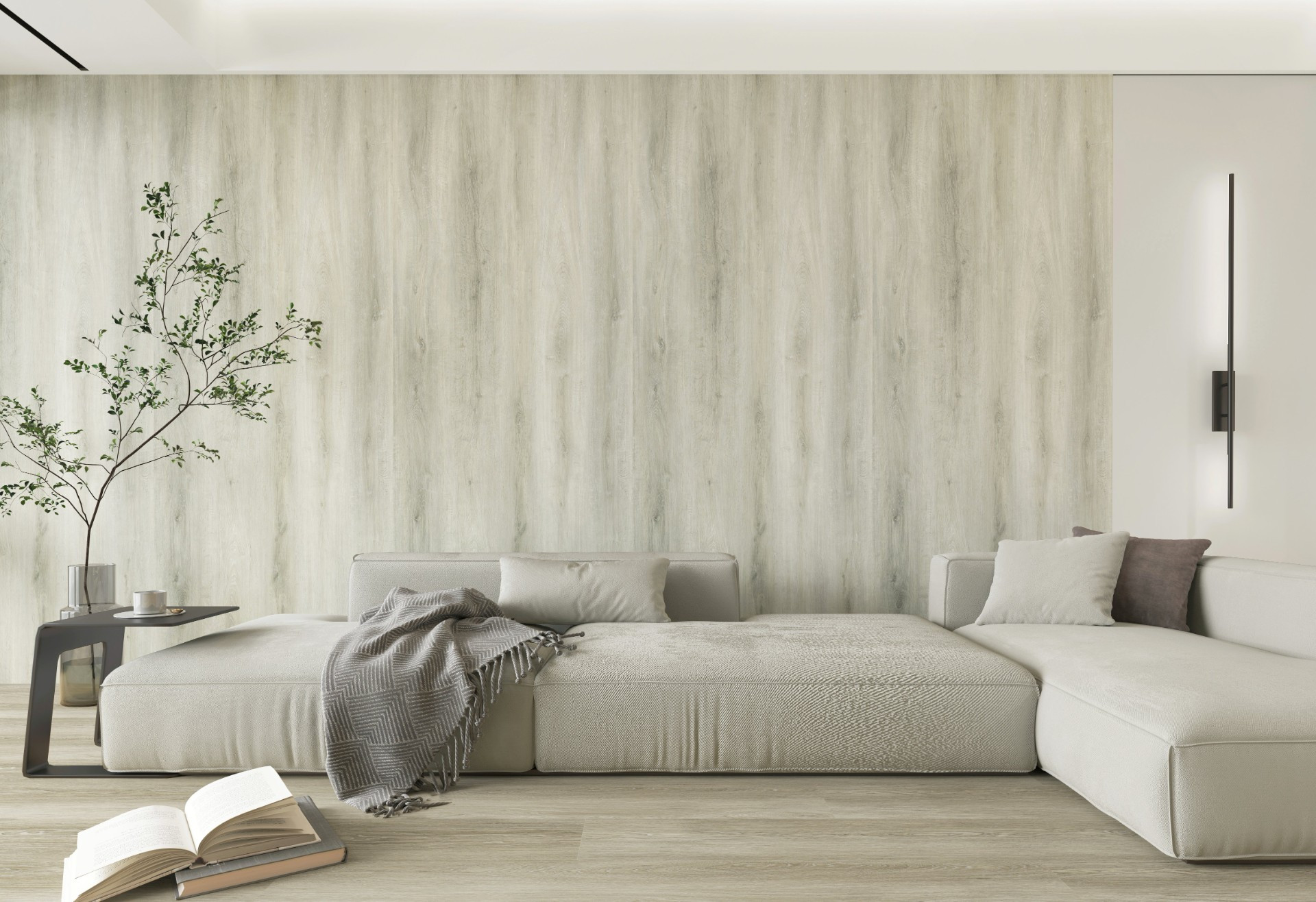

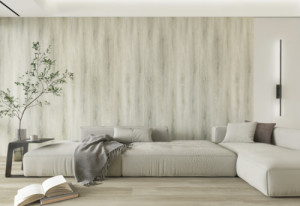

29074-1
INSTALLATION INSTRUCTIONS:
1. Allow Product 24 Hours to Acclimate if stored in high temperature variances
2. Measure wall & panels. Cut to size as required
3. Make sure the wall is flat without any bumps, humps, screw heads sticking out etc.
4. Dry lay the panel to make sure its cut properly. Mark with a pencil on the wall where the joint will be.
5. Using a caulking gun, apply a very thick bead of TRU STONE HIGH TACK ADHESIVE OR NO MORE NAILS HEAVY DUTY CONSTRUCTION ADHESIVE by LEPAGE. Apply one thick bead 1 inch from the edge of where the panel will sit on the wall. Apply another bead 3 inches inside from the edge. Then in the middle of this "box" shape apply a line of bead every 8 inches. One panel will use up approximately 3 bottles ( 800ml ) of adhesive.
6. After installing the first panel, use tile levelers every 20 inches (50cm) to make sure the panels are aligned. To easily snap off the tile levelers after installation, dab some adhesive on the levelers so the base sticks to the wall.
7. Apply heavy pressure along where the adhesive was placed immediately after install , with something that is not going to scratch the surface of the panel.
8. Once the adhesive has cured, remove the tile levelers and tape up the grout line. Use silicone to fill the grout space between panels and inside wall corners. Remove tape.
9. Metal L trim molding can be used on outside corners
INSTALLATION MATERIALS
-TRU STONE HIGH TACK ADHESIVE - 290ML BOTTLES. EACH PANEL (29 SQFT | 2.70 M2) REQUIRES 3 BOTTLES.
-LEVELERS - 5 PCS LEVELERS REQUIRED BETWEEN TWO PANELS.
-METAL L TRIM MOULDINGS FOR FINISHING OUTSIDE CORNERS.
